OWAtecta S 36 clip-in corridor system (for UK only)

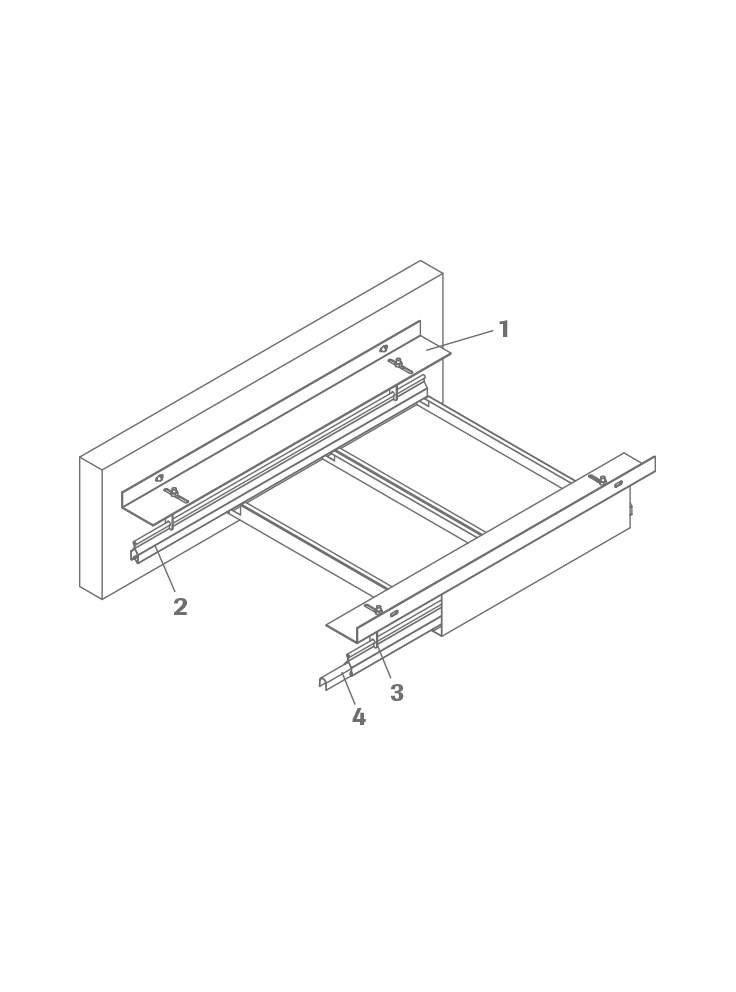

S 36 Success, clip-in profile
1 Carrier angle no. 5110
2 Clip-in rail no. 87B
3 Hanger no. 1387E
4 Connector no. 88E
DS 9391 e/uk
2 Clip-in rail no. 87B
3 Hanger no. 1387E
4 Connector no. 88E
DS 9391 e/uk
Technical data
Dimensions
Width 250 – 600 mm | length 600 – 2500 mm
(large format planks on request)
Thickness
Galvanized sheet steel approx. 0.5 – 0.7 mm (depending on the version)
Edges
Long edge: 10, short edge: 02
Perforations
All perforations possible
For further details please see OWA brochure no. 9336 e
