Detailaufnahme S 1

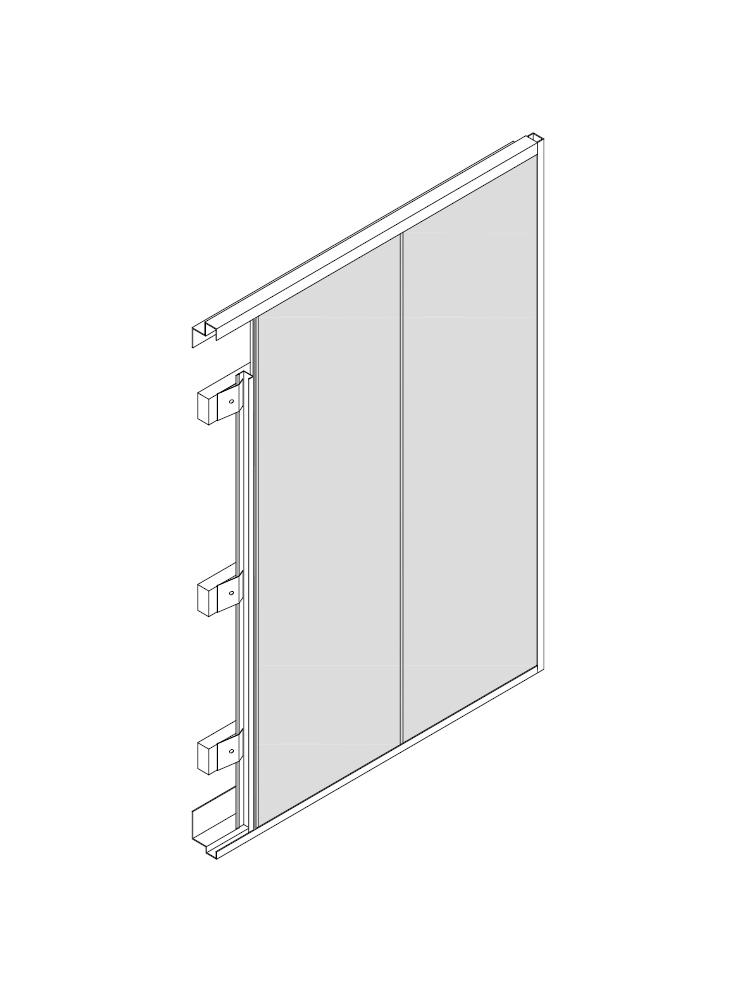

Key
1 Hanger no. 12/10
2 Hanger profile no. 70, distance ≤ 1250 mm
3 Connector no. 77
4 Spring clip no. 60
5 Z profile no. 20, distance ≤ 625 mm
6 Connector no. 25
7 T profile no. 23
8 Wall profile no. 50G
9 Wall spring clip no. 52
10 Clip-in plate no. 62
11 Timber batten, e.g. roof batten, space ≤ 1250 mm
12 Tile width
13 Tile length

This system is available also for wall and direct mounting. For further information, please refer to brochure no. 9991 (LINK TO: DS 9991).

Source: DS 9991

Technical data

Dimensions

Dimensions: 600 x 600 mm, 625 x 625 mm
Widths: 300 mm, 312.5 mm, 400 mm
Lengths: 1200 mm, 1250 mm, 2000 mm, 2500 mm

Edges

1

Tile thickness

Approx. 15 mm and 20 mm (OWAcoustic premium)

Fire behaviour

A2-s1,d0 as per EN 13501-1

Resistance to fire

see brochure no. 9500 eu e or no. 9500 e uk

Metal system

All metal components are galvanized or white coated. For further details and colours see the OWAlifetime collection price list

Minimum suspension depth

Suspended installation 115 – 140 mm when using hanger no. 09/10, no. 09/5 and no. 76 (depending on the existing ceiling slab)
Direct installation approx. 28 mm + timber batten
