OWAtecta S 49 mesh lay-in system (for UK only)

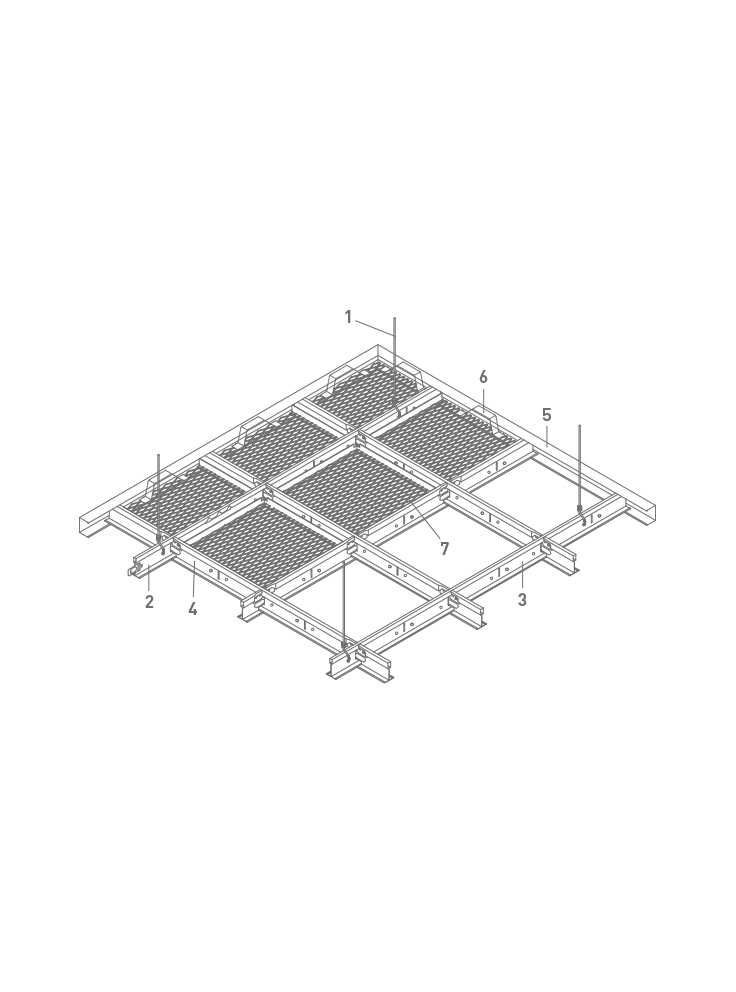

System S 49 mesh lay-in system, for 24 mm T profile
1 Hanger
2 Main tee no. 45
3 Cross tee no. 46
4 Cross tee no. 47
5 C wall angle no. 57
6 Wall spring no. 5210
7 Mesh tile
DS 9391 e/uk
2 Main tee no. 45
3 Cross tee no. 46
4 Cross tee no. 47
5 C wall angle no. 57
6 Wall spring no. 5210
7 Mesh tile
DS 9391 e/uk
Technical data
Dimensions
600 x 600 mm
Mesh patterns
R 16 x 8 | R 30 x 10 | R 42 x 13 | R 60 x 20
Mesh types please see OWA brochure no. 9391 e/uk
Mesh shape
Diamond
Edge
03
Edges please see OWA brochure no. 9391 e/uk
Panel types
Type D: with L-shaped frame
Type E: with straight frame
Panel types please see OWA brochure no. 9391 e/uk
