OWAtecta S 45 T15 lay-in system (for UK only)

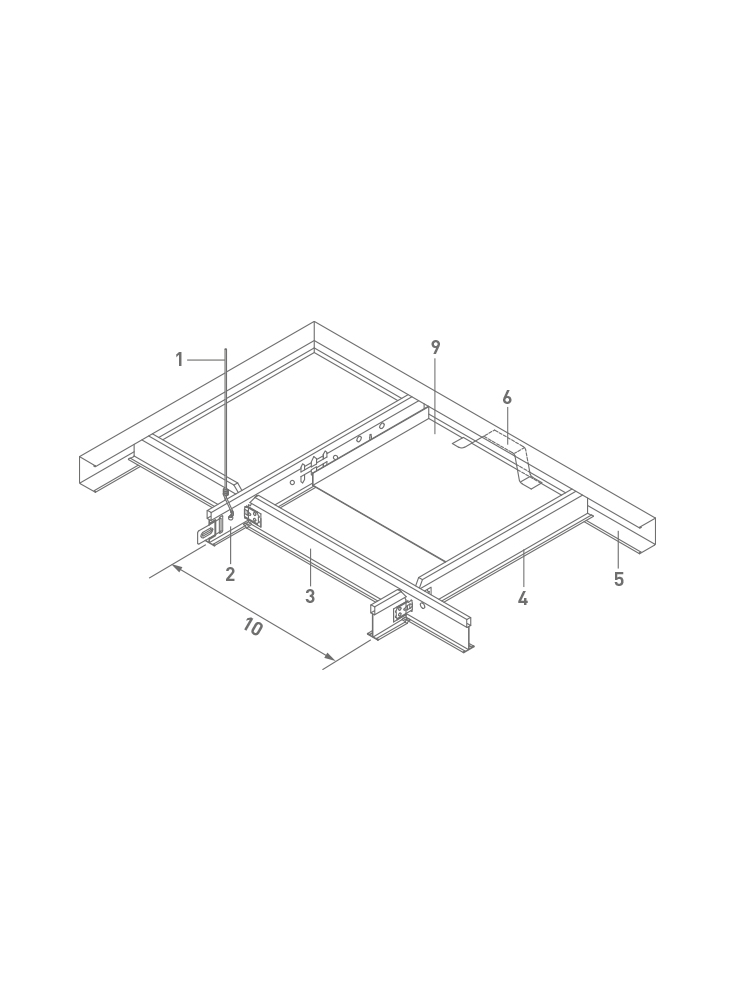

System S 45 T15 lay-in system
1 Hanger
2 Main tee cliq-15-MR
3 Cross tee long cliq-15-CT
4 Cross tee short cliq-15-CT
5 C wall angle no. 57
6 Wall spring no. 5210
7 Shadow wall angle no. 50/15G
8 Wall clip no. 99010
9 Metal tile
10 Module distance
DS 9391 e/uk
2 Main tee cliq-15-MR
3 Cross tee long cliq-15-CT
4 Cross tee short cliq-15-CT
5 C wall angle no. 57
6 Wall spring no. 5210
7 Shadow wall angle no. 50/15G
8 Wall clip no. 99010
9 Metal tile
10 Module distance
DS 9391 e/uk
Technical data
Dimensions
600 x 600 mm
Thickness
Galvanized steel approx. 0.5 mm
Edges
03, 16
Perforations
L0 – unperforated, Rg2516, Rd1522
(more perforations on request)
For further details please see OWA brochure no. 9333 e
