OWAtecta S 22 (for UK only)

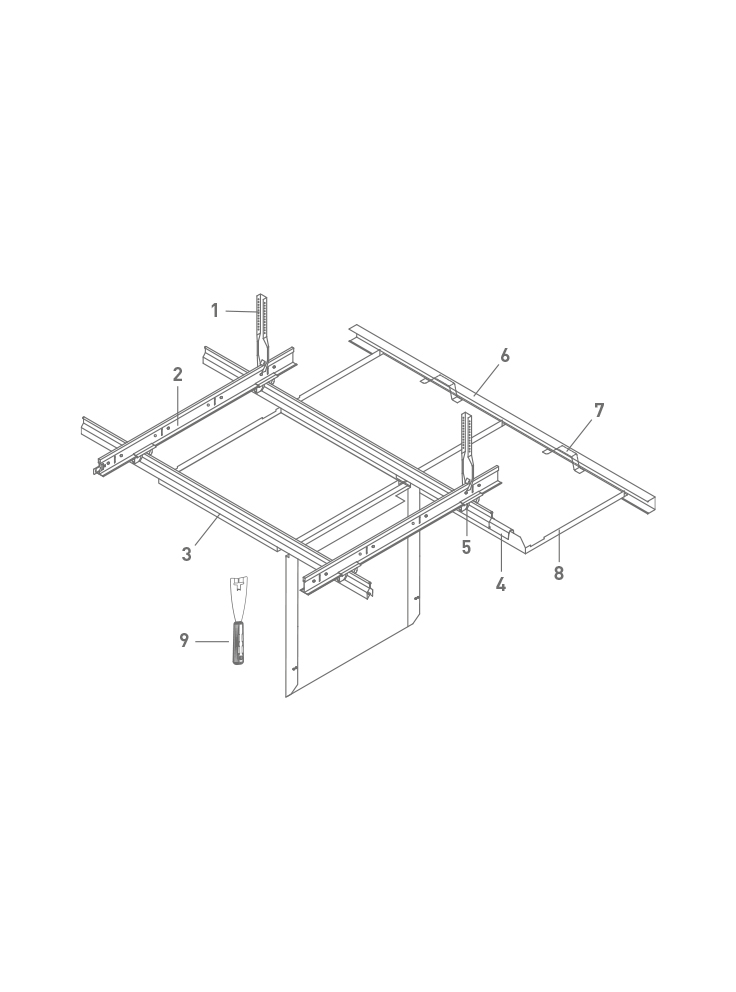

System S 22 clip-in swing down system - light duty, concealed
1 Nonius hanger no. 17/45
2 Main tee no. 45
3 Clip-in profile no. 87B
4 Connector for clip-in
profile no. 88E
5 Cross connector no. 93C
6 C wall angle no. 57
7 Wall spring no. 5210
8 Metal tile
9 Clip-tool no. 99005
DS 9391 e/uk
2 Main tee no. 45
3 Clip-in profile no. 87B
4 Connector for clip-in
profile no. 88E
5 Cross connector no. 93C
6 C wall angle no. 57
7 Wall spring no. 5210
8 Metal tile
9 Clip-tool no. 99005
DS 9391 e/uk
Technical data
Dimensions
600 x 600 mm
Thickness
Galvanized sheet steel approx. 0.6 mm
Edge
01
Perforations
L0 – unperforated , Rg2516, Rd1522
For further details please see OWA brochure no. 9332 e
