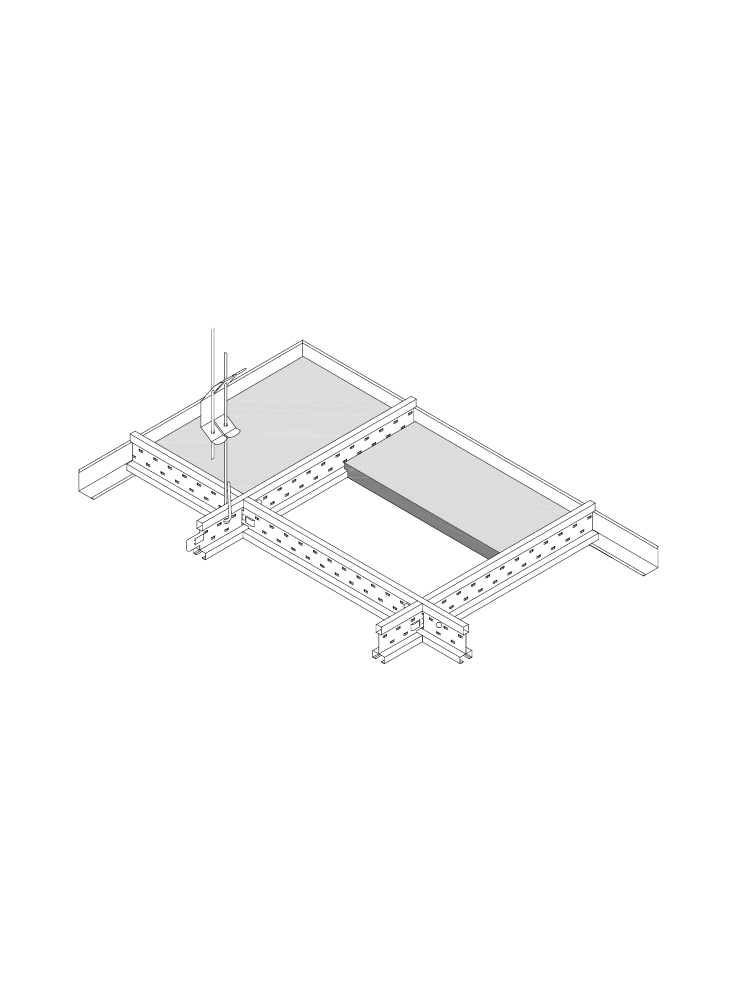

Detailaufnahme S 15b OWAline
Key
1 Hanger no. 12/.../...
2 Main tee no. 3500, slotted every 600 mm
2a Main tee no. 3501, slotted every 1200 mm
3 Cross tee no. 3512, 600 mm
4 Cross tee no. 3514, 1200 mm
5 Cross tee no. 3524, 1200 mm, without central slot
6 Wall profile no. 50G
7 Wall profile no. 1456 (for GK frieze connection)
8 Axis distance

Note: When using Trapeze1, an L-profile no. 37 must be used for each tile.


Source: DS 1022

Technical data

Dimensions

600 x 600 mm | 610 x 610 mm | 1200 x 600 mm | 1220 x 610 mm | 1200 x 1200 mm | 1220 x 1220 mm

(Other sizes available on request. See OWAlifetime collection price list for minimum quantities and surcharges)

Edge

15b

Tile thickness

Approx. 15 mm and 20 mm (OWAcoustic premium)

Fire behaviour

A2-s1,d0 as per EN 13501-1

Resistance to fire
Metal system

All metal parts galvanized or white coated with black and white shadow gap

Minimum suspension depth

75 – 100 mm (depending on the existing ceiling slab) for easy removal of the 120 mm tiles

Note to the downloads (right):

Please note that the brochure DS 1022_S15b OWAline applies to design ceiling systems (OWAconsult collection) and the system sheet System_S15b applies to mineral ceiling systems (OWAlifetime collection).
