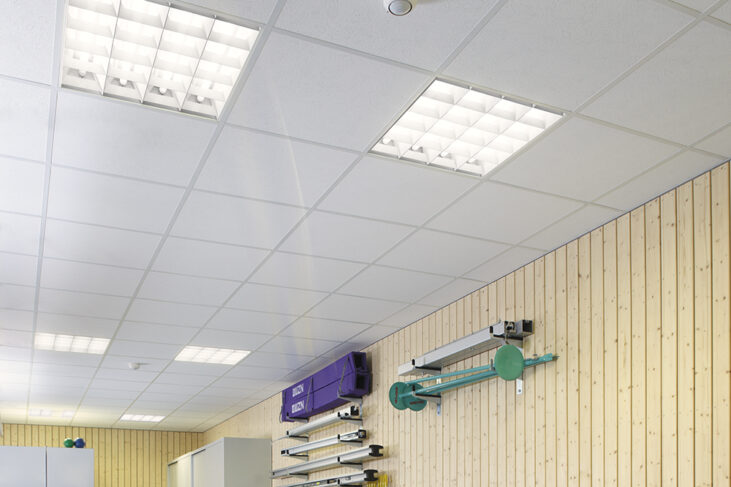

S 3 sports
System S 3 sports ball-impact resistant, exposed with acoustic properties
1 Nonius hanger no. 17/45 and extension no. 16/..., distance ≤ 1250 mm,
2 safety pins no. 76 or 2 nails no. 78
2 Main tee cliq-24-MR, distance ≤ 625 mm
3 Cross tee short cliq-24-CT
4 Wall angle no. 50G
5 Cross connector sports no. 31
6 Reinforcement spline sports no. 30, length 1250 mm, densely joined
7 Connector no. 77
8 OWAcoustic premium sports
9 Module distance ≤ 625 mm
Source: DS 9991 e
2 safety pins no. 76 or 2 nails no. 78
2 Main tee cliq-24-MR, distance ≤ 625 mm
3 Cross tee short cliq-24-CT
4 Wall angle no. 50G
5 Cross connector sports no. 31
6 Reinforcement spline sports no. 30, length 1250 mm, densely joined
7 Connector no. 77
8 OWAcoustic premium sports
9 Module distance ≤ 625 mm
Source: DS 9991 e
Technical data
Dimensions
Width: 625 mm
Length: 625 mm
Edges
3
Tile thickness
40 mm nom.
Fire behaviour
A2-s1,d0 nach DIN EN 13501-1
Metal system
All metal components listed are galvanized steel or white coated galvanized steel respectively. For further details and colours please consult OWAlifetime collection price list no. 9001 e.
Minimum suspension depth
For ease of panel removal ≥ 230 mm is recommended
